EN 12527 Caster Starting Force Tester for Rolling Resistance & Static Load Test

  • 1
  • 2

Brand Name : Sinuo

Model Number : SNJ601

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20 Sets Per Month

Delivery Time : 30 Days

Packaging Details : Plywood Case

Test Station : Single station

Control System : PLC control

Test Functions : Static load test

Caster Diameter : Ø50 mm – Ø200 mm

Vertical Load : 0–10000 N

Horizontal Force : Max. 5000 N

Force Accuracy : ±1% F.S.

Stroke Speed : 0–300 mm/min

Contact Now

EN 12527 Caster Starting Force Tester for Rolling Resistance & Static Load Test
The EN 12527 Caster Starting Force Tester is a professional testing instrument designed to determine rolling resistance, starting rolling resistance, steering force and braking efficiency of industrial casters, universal wheels, furniture casters, medical casters and heavy-equipment casters.
It fully meets EN 12527, GB/T 14688, GB/T 14687 and other international and national standards. It can also verify the friction coefficient of friction surfaces in reverse, making it ideal for factories, laboratories and quality inspection institutions.
Working Principle & Structure
The machine uses a servo electric cylinder to simulate vertical load, and another servo electric cylinder drives the caster in horizontal reciprocating motion. It can perform caster rotation performance test (rolling resistance / starting resistance), steering performance test (steering starting force) and static load test.

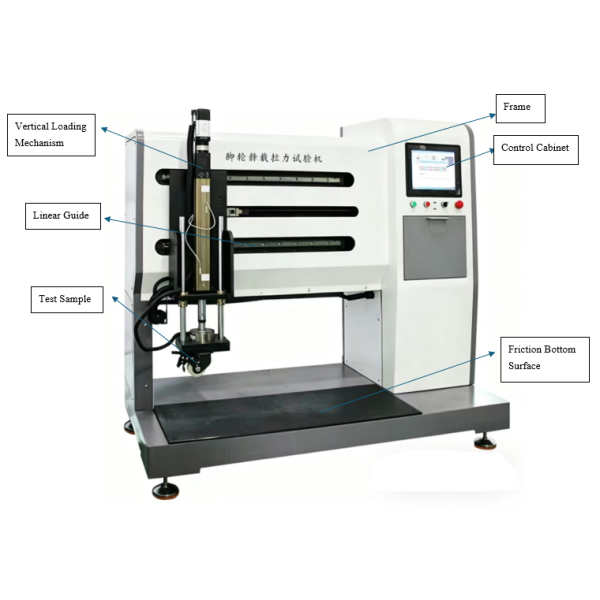

Equipment Components

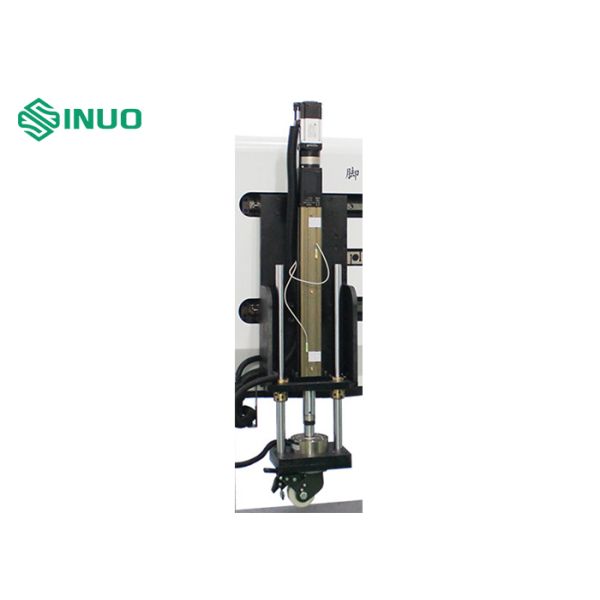

  • Vertical Loading Mechanism: Employs a servo motor-driven electric cylinder, connected to a 2T range sensor to form a closed-loop control system. Vertically guided by a guide rail, it can apply a maximum downward vertical force of 1T.
  • Horizontal Loading Structure: Employs a servo motor-driven electric cylinder, connected to a 1T range sensor to form a closed-loop control system. Horizontally guided by a linear guide rail, it can horizontally drag the rollers, applying a maximum horizontal force of 500kg.
  • Frame Structure: Adopts an integral frame structure; the friction surface can be customized upon request.
  • Control System: PLC-controlled with a 7-inch color touchscreen displaying force-time curves.
EN 12527 Caster Starting Force Tester for Rolling Resistance & Static Load Test
Technical Parameters
Item Specification
Control System PLC control + 7-inch color touch screen
Test Station Single station
Test Functions Static load test; Rolling resistance test; Starting resistance test; Braking efficiency test
Suitable Caster Diameter Ø50 mm - Ø200 mm
Vertical Load 0-10000 N stepless adjustable
Horizontal Force Max. 5000 N
Force Accuracy ±1% F.S.
Horizontal Stroke Speed 0-300 mm/min stepless adjustable
Dimensions (L×W×H) 1500×800×1600 mm
Power Supply AC 220 V, 50/60 Hz
System Unit Introduction
The system is designed based on modular principles, strictly adhering to standard requirements in design and manufacturing, while also utilizing standardized designs and components as much as possible. This ensures optimized system performance and technical support.
The system employs a servo motor and electric cylinder drive, guaranteeing high reliability and an extremely long service life. The entire system has clear functions, a compact structure, an aesthetically pleasing appearance, and a reasonable layout, facilitating maintenance and routine upkeep.
The equipment is designed and manufactured to meet the customer's force testing requirements, and test data can be printed via a micro printer.
System Components
  • Vertical Loading Unit: Includes one set of servo motor and electric cylinder, one 2T pressure sensor, a sample mounting plate, and a vertical guide mechanism.
  • Horizontal Force Application Unit: Consists of two linear guide rails and an electric cylinder with a servo motor, forming a closed-loop control with a horizontal tension sensor. It can achieve a maximum horizontal tension of 5000N.
  • Intelligent Electrical Control System: Mainly consists of a control cabinet, control circuit, operation panel, and core control components. The system's electrical control components are centrally installed in a control cabinet equipped with ventilation facilities.
EN 12527 Caster Starting Force Tester for Rolling Resistance & Static Load Test
Control System Features
  • This system adopts PLC intelligent control and is operated via a 7-inch color touchscreen.
  • The system software program was developed by our company. Test rate and test stroke can be preset via the touchscreen.
  • The starting force value (peak value) can be obtained through the force-time curve and recorded data, fully meeting the relevant requirements of the standard.
EN 12527 Caster Starting Force Tester for Rolling Resistance & Static Load Test
