IEC 62196 EV Plug Grounding Contacts Short-time High-current Withstand Test Equipment

Brand Name : Sinuo

Model Number : SNQC1006B-6500A

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : T/T

Supply Ability : 5 set per month

Delivery Time : 30 days

Packaging Details : Plywood Case

Output Workstation : 1 DC output station

Test Current Output : DC 200–6500A

Output Voltage : DC less than DC 15V

Contact Power Supply : Current range AC (0–2) A

Continuous Mode Test Time : 0.01–99.99 hours

On/Off Mode Power On/Off Time : 0.01–99.99 hours

Current Display Accuracy : ±(0.25% of reading + 0.25% of range), resolution 1A

Voltage Display Accuracy : ±(0.25% of reading + 0.25% of range), resolution 0.01V

Contact Now

IEC 62196-3 EV Plug Grounding Contacts Short-time High-current Withstand Test Equipment
Product Overview

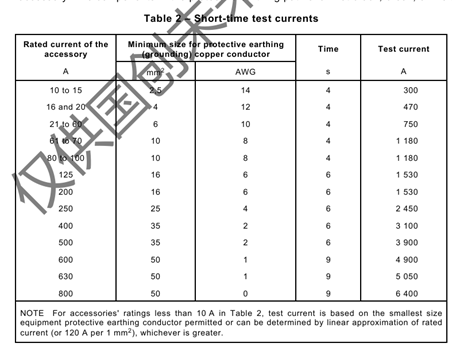

This advanced test system complies with IEC 62196-1Ed.4CDV 2020 (clause 12.3, 24, 34.2, 34.4, 35.4), IEC 62916-2, and IEC 62916-3 standards. Designed for evaluating temperature rise in EV plugs and sockets under rated current conditions, it accurately assesses surface heating of electrical accessories and verifies terminal temperature rise compliance with international standards. The system also performs short-time high-current withstand tests for grounding contacts.
Key Features
  • Computer-controlled operation with custom software for standardized testing procedures
  • Comprehensive assessment of surface heating and electrode temperature rise in charging interfaces
  • Automated data collection and analysis with built-in standard compliance verification
  • Multiple operating modes for flexible testing scenarios
  • Precision temperature measurement system with live testing capability
Technical Specifications
Output Workstation 1 DC output station
Maximum Output Voltage DC < 15V
Adjustable Test Current DC 200-6500A
Current Display Accuracy ±(0.25% reading + 0.25% range), 1A resolution
Voltage Display Accuracy ±(0.25% reading + 0.25% range), 0.01V resolution
Test Current Stability ±(1% set value + 0.5A), ~1s response time
Operating Modes
  • Continuous Mode: Test duration 0.01-99.99 hours
  • On/Off Mode: Programmable power cycles (0.01-99.99 hours on/off, 1-9999 cycles)
  • Automatic Temperature Control:
    • Temperature rise setting: 0-100°C
    • Stability accuracy: ±0.5°C
    • Automatically calculates required current for target temperature
Temperature Measurement System
  • Range: 0-260°C with ±0.3% + 1°C accuracy
  • 16 measurement channels (including ambient temperature)
  • Supports J, K, T, E, S, N, B, R thermocouples
  • Includes 20 K-type 30AWG fine wire thermocouples (2m length)
  • Live testing capability without instrument damage
  • Adjustable scanning speed: 0.1-1800 seconds per channel
  • Automatic ambient temperature compensation
Additional Features
  • Voltage drop and resistance testing capability
  • Touchscreen industrial control computer (Pentium 4/1.8G, 4GB RAM, 64GB SSD)
  • Programmable current settings (≥10 segments)
  • Real-time data visualization with adjustable sampling (100ms-1800s)
  • 8GB+ data storage with USB export (CSV, XLSX formats)
  • Overload/overcurrent protection with automatic cutoff
Physical Specifications
  • Power Supply: AC 220V ±10%, 50/60Hz, 50KVA
  • Dimensions: 1000(W) × 1300(D) × 1800(H) mm
  • Weight: ~400kg with heavy-duty casters
  • Test Fixture: 800×400×400mm with acrylic transparent cover
IEC 62196 EV Plug Grounding Contacts Short-time High-current Withstand Test Equipment
System interface showing temperature control settings
IEC 62196 EV Plug Grounding Contacts Short-time High-current Withstand Test Equipment

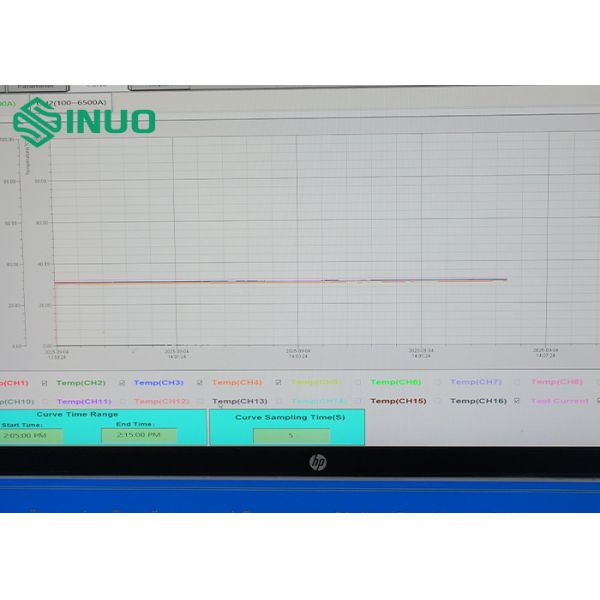

Temperature monitoring with real-time curve display
IEC 62196 EV Plug Grounding Contacts Short-time High-current Withstand Test Equipment

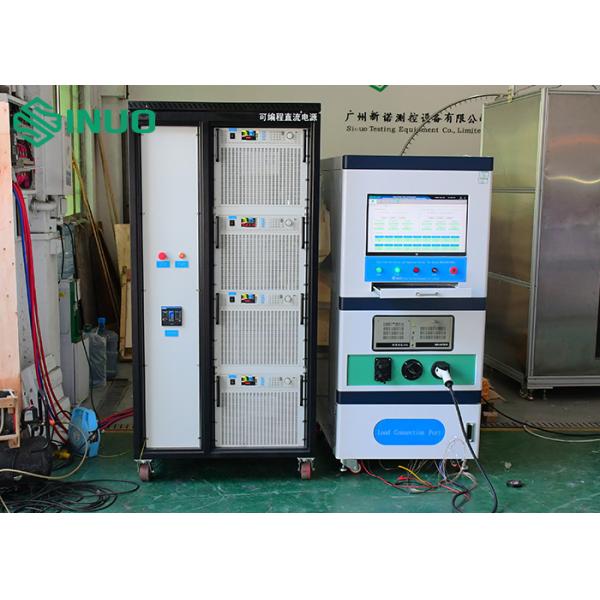

Complete test system configuration
IEC 62196 EV Plug Grounding Contacts Short-time High-current Withstand Test Equipment

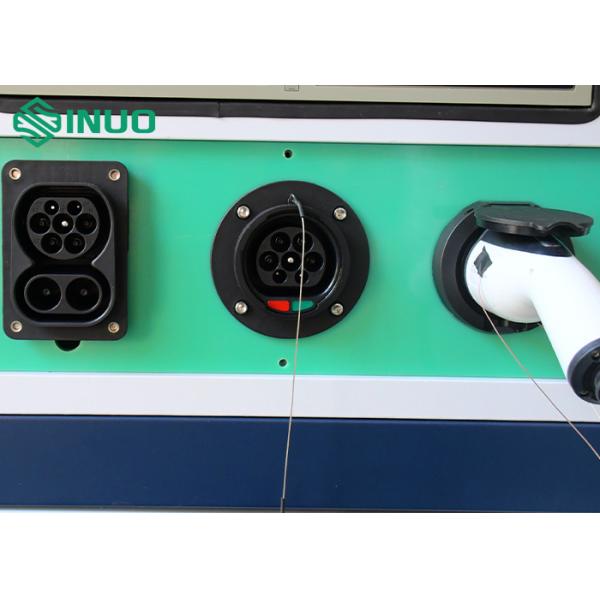

Connection for samples
